Modular IO & 3PDT Boards

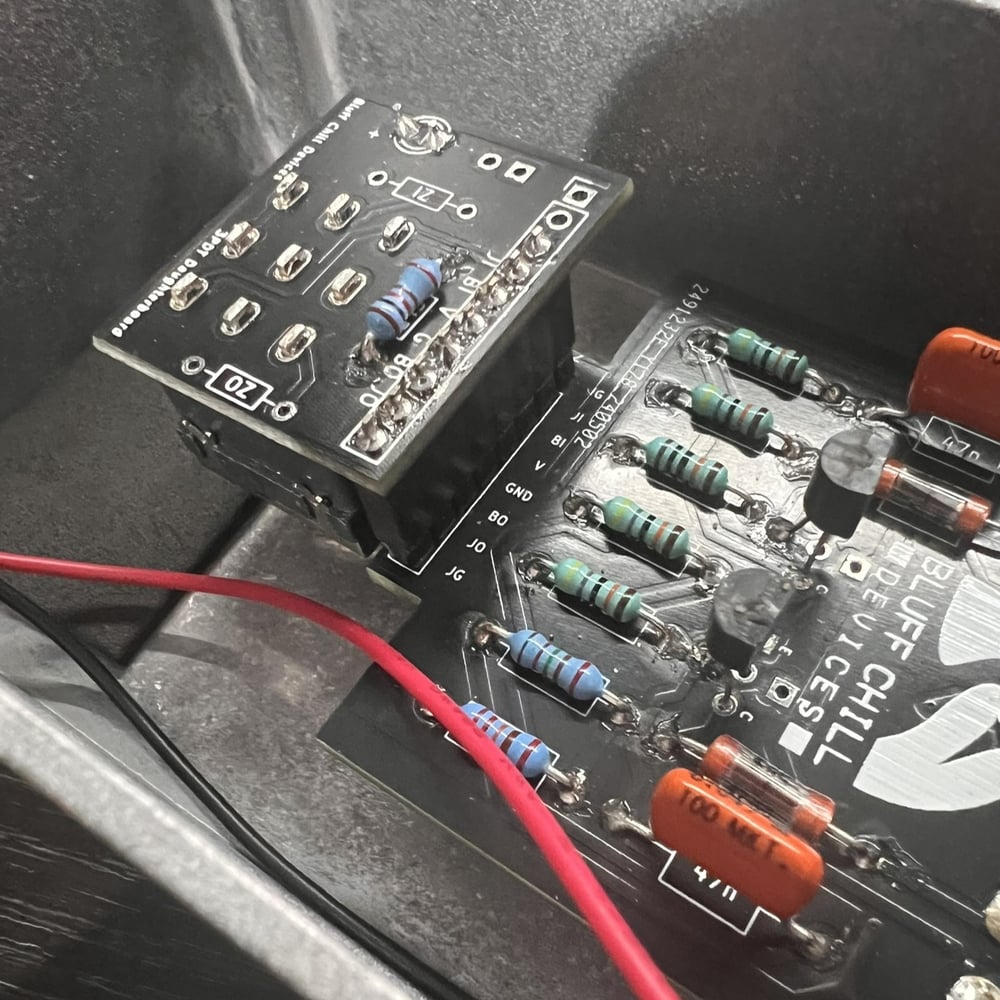

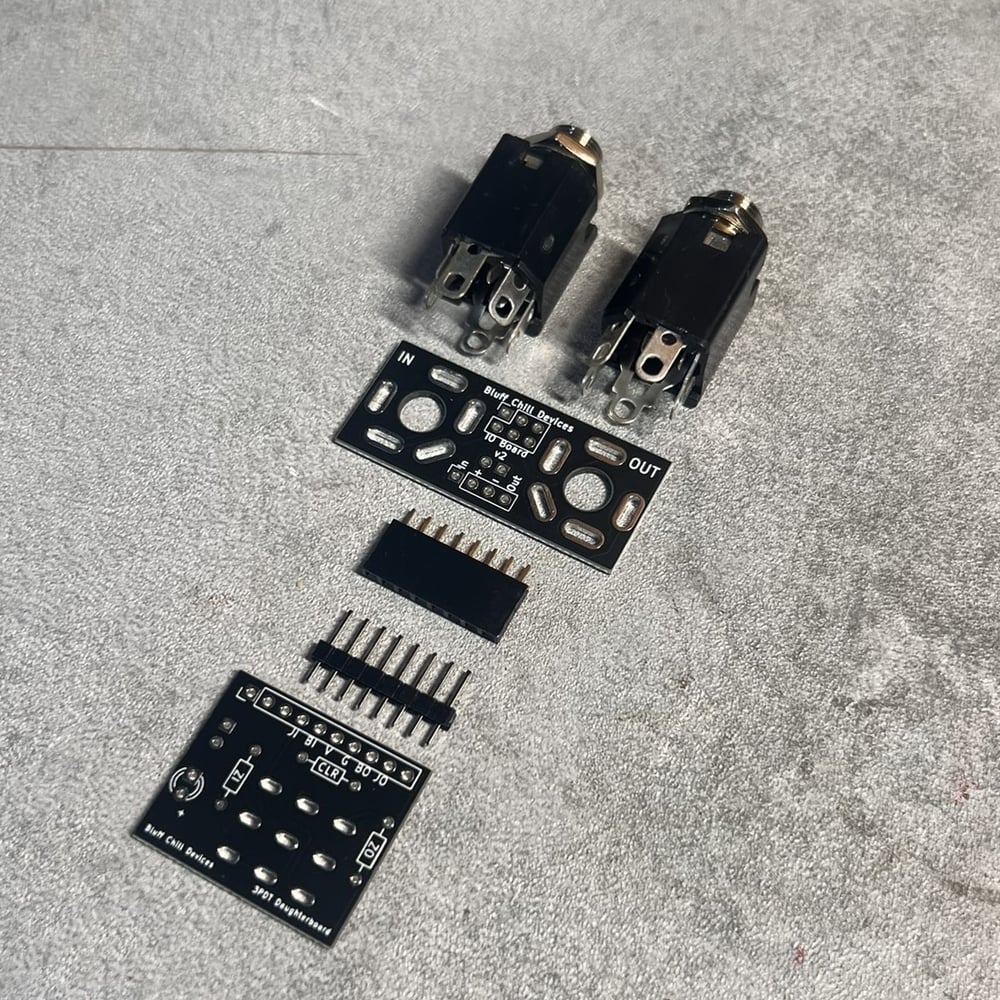

This is a set containing a 3PDT daughterboard and an IO jack board (in/out sockets included!), designed for use with several of my other PCBs to create a spaghetti-free, neat guitar pedal.

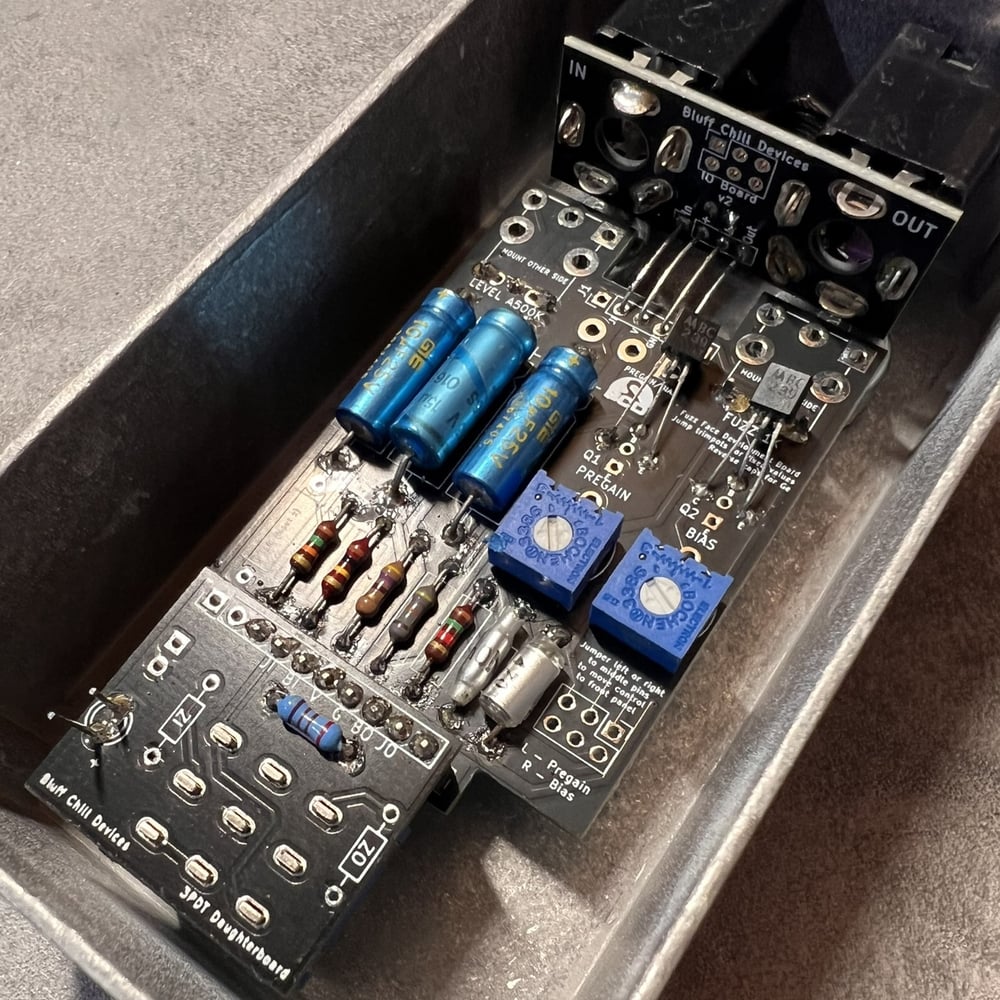

These are a great way to build a neat, professional looking guitar pedal without the need for messy offboard wiring and all the headaches that usually come with finding out why your build isn't making a sound!

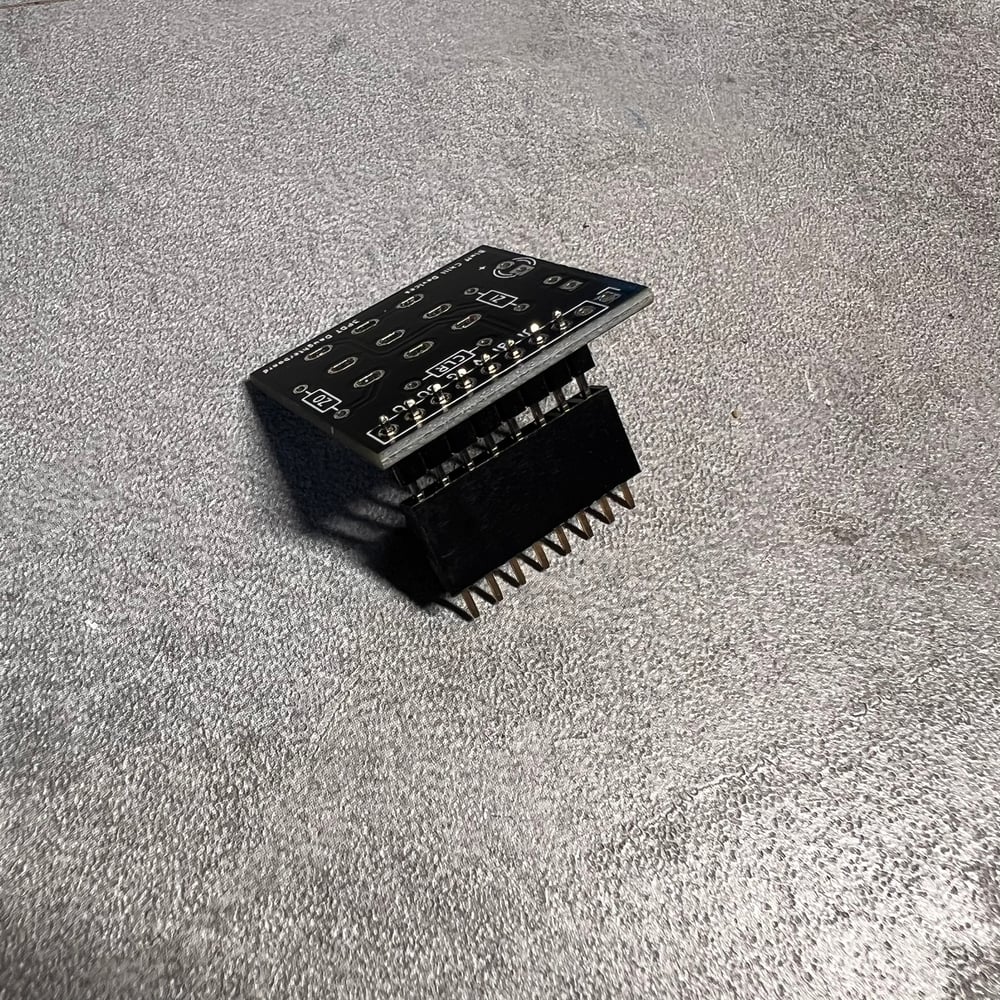

The 3PDT daughterboard is designed to work with the standard 'blue switches' and is easily removed for troubleshooting purposes, or to avoid committing it to a pedal you're not sure about. It can still be soldered for durability purposes when you're happy with it! Includes an 8-pin socket with headers to connect to compatible boards.

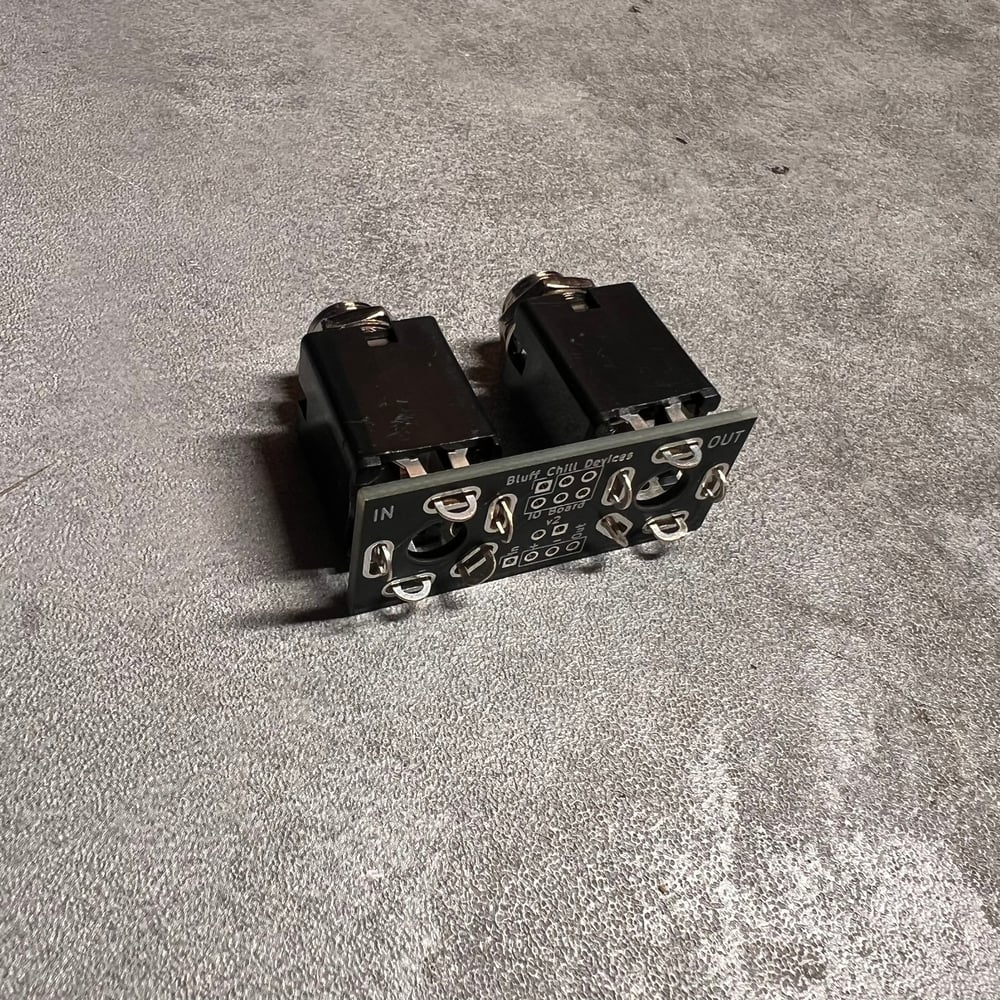

The IO jack boards are designed for a top-mount build and fits neatly in the enclosure, allowing you to wire up your in, out and power sockets directly to the board using only component off-cuts, or some short lengths of wire for flexibility.

There are multiple points to solder to on both boards, with connections to manage battery/DC input switching and stereo in/out on the IO board, and integrated footprints for a bypass LED & CLR, as well as input and output impedance resistors on the 3PDT daughterboard.

This means this kit can work with practically any build-style and takes the boredom out of cutting little bits of wire and trying to insert them into tiny little holes, with less chance of ugly blobby solder connections all over the place, but is also compatible with several of my other boards:

- Hot Swapper
- Mother Sky/Fuzzface
- Fuzzrite
- Development Board
- Turret Development Board
- More coming soon!
